SY5120 G1/4 Two Position Five Way Solenoid Valve SMC Equivalent

SY5120 G1/4 Two Position Five Way Solenoid Valve SMC Equivalent

Place of Origin : Ningbo China(Mainland)
Brand Name : FLUIDAC or OEM
Certification : ISO9001
Model Number : SY5120-1/8-220VAC-L
MOQ : 5 piece
Price : USD8--
Packaging Details : Boxes, Cartons,Wooden cases,Pallets
Delivery Time : Within 20 days after receiving payment or deposit
Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability : 10000 Pieces Per month
interchangeable : SMC
Series : SY series
Port size : M5,G1/8,G1/4,G3/8
Type : 2 position 5 way
Coil Voltage : 12VDC|24VAC|24VDC|110VAC|220VAC
Material : Aluminum
Motion Pattern : Motion pattern Inner pilot operated
Product name : Solenoid Valve
Contact Now

SY5120 G1/4 Two Position Five Way Solenoid Valve SMC Equivalent

SMC type SY series Solenoid valve two position five way port size M5,G1/8,G1/4,G3/8 e.g SY5120-1/8-220VAC-L

SY3120, 3220, SY5120, 5220, SY7120, 7220 SMC 5/2 way pneumatic solenoid operated valve for air directional control with Aluminum Alloy body material


Quick Detail:


* SY series solenoid valve SMC interchangeable

* Two position Five way,Three Position Five Way

* L Type Socket,G Type Wire outleading,D type Din Connector

* Port size M5x0.8,G1/8,G1/4,G3/8

* Compact design small volume

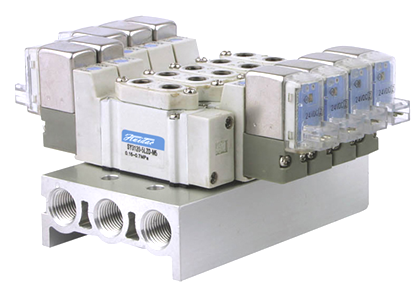

*With Manifold block for group valve joint

*High working frequency up to 50cycle/Sec

*Fast respond,low consumption


Applications:


SY Series SMC Type solenoid valve act as control equipment for air directional control in Pneumatic automation systems.

Specifications:

ORDERING CODE

SY5

120

1/4

AC220V

L

Type

Function type

Port size

Voltage

Electricity Connect

SY3:SY3000 Series SMC type Solenoid valve

120:Two Position Five Way Single coil

M5:M5x0.8

AC220V:220VAC

L:Wire outleading

SY5:SY5000 Series SMC type Solenoid Valve

220:Two Position Five way Double coil

1/8:G1/8"

DC24V:24VDC

SY7:SY7000 Series SMC type Solenoid Valve

320:Two Position Five Way Double coil Center Close

1/4:G1/4"

AC110V:110VAC

S:Socket Type

SY9:S7000 Series SMC type Solenoid Valve

420:Two Position Five Way Double coil Center Exhuasting

3/8:G3/8"

DC12V:12VDC

520:Two Position Five Way Double coil Center Pressure


SPECIFICATION

Model no

SY Series

Working Medium

Compressed 40 Micron Filtered Air

Body Material

Aluminum Alloy

Position And Way Numbers

Two Position-Five Way

Motion Pattern

Inner Pilot Operated

Port Size(Main body)

M5x0.8 G1/8 G1/4 G3/8

Pressure Endurance

1.05MPa

Working Pressure

0.15~0.8MPa

Operating Temperature

5~60℃

Voltage Tolerance

±10%

Power Consumption

AC:4.5VA DC:3.0W

Protection Class&Insulation

F Class IP65

Maximum Working Frequency

50cycle/Sec

Minimum Actuating time

0.05Sec

Lubrication

Not Required


SY3120

SY5120

SY7120
