Oxygen Generator Diaphragm Pilot Solenoid Valve Low Pressure0.35Mpa G1/4

Place of Origin : Ningbo China(Mainland)
Brand Name : FLUIDAC or OEM
Certification : ISO9001
Model Number : DSV-08V
MOQ : 5 piece
Price : USD8--
Packaging Details : Boxes, Cartons,Wooden cases,Pallets
Delivery Time : Within 20 days after receiving payment or deposit
Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability : 20000 Pieces Per month
Port size : G1/4
Type : two position four way
Coil Voltage : 24V|12VDC|24VAC|24VDC|110VAC|220VAC
Material : Aluminum
Motion Pattern : Diaphragm pilot
Product name : Solenoid Valve
Contact Now


Oxygen Generator Diaphragm Pilot Solenoid Valve Low Pressure0.35Mpa G1/4
0.08Mpa~0.35Mpa Low working pressure two position four way Diaphragm pilot Solenoid valve port size G1/4 For application to Oxygen Generator body material aluminum alloy Model no DSV-08H DSV-08V


Quick Detail:

* DSV series low presure solenoid valve
* Aluminum alloy material Valve Body
* Two position four way,Diaphragm pilot motion
* Working at low pressure from 0.08Mpa~0.35Mpa,Sensitive to low pressure
* Vertical mounting direction and Horizontal Direction for option
* Socket type electricity connection and Outlead wire type for selectable
* Special Fomular Silicone ensure long serivce life

Applications:

DSV series Diaphragm solenoid valve used in the low pressure system especially use for Oxygen Generator system of medical Industrial

Specifications:

ORDERING CODE

DSV

08

V

DC24V

W

Type

Joint Port size

Mounting Direction

Voltage

Electricity Connect Form

DSV:DSV Series Two Postion Four Way Diaphragm Solenoid valve

08:G1/4

V:Vertical Type

DC24V:24VDC

S:Socket type

H:Horizontal Type

DC12V:12VDC

W:Out-leading Wire


SPECIFICATION

Model no

DSV-08-V

DSV-08-H

Working Medium

Compressed 40 Micron Filtered Air

Body Material

Aluminum Alloy

Position And Way Numbers

Two Position-Four Way

Port Size

G1/4

Motion Pattern

Diaphram Pilot

Working Pressure

0.08~0.35MPa

Operating Temperature

—5~80℃

Voltage Tolerance

±10%

Insulation&Protection Class

F Class IP65





Pneumatic valve,Diaphragm solenoid valve,Oxygen Generator Solenoid valve



























Product Tags:

Pneumatic Solenoid Valve



Solenoid Operated Valve


China Customized Inflatable Bumper Ball Game Bubble Adult Grass CE supplier

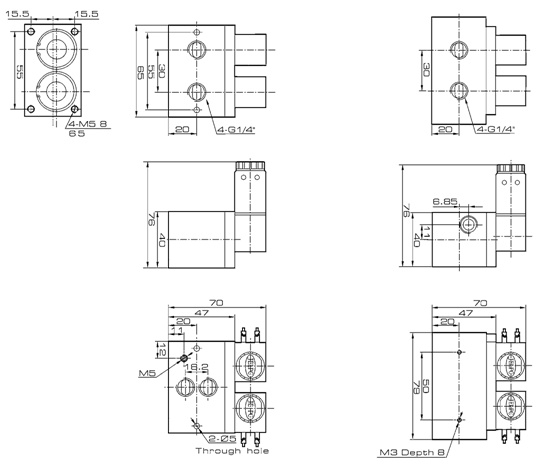

Oxygen Generator Diaphragm Pilot Solenoid Valve Low Pressure0.35Mpa G1/4 Images
