16bar 5mm Brass Timer Automatic Drainer With Strainer Filter and Drainage Valve

Place of Origin : Ningbo China(Mainland)
Brand Name : FLUIDAC or OEM
Certification : ISO9001
Model Number : OPT-A-16-04
MOQ : 5 piece
Price : USD10--
Packaging Details : Boxes, Cartons,Wooden cases,Pallets
Delivery Time : Within 20 days after receiving payment or deposit
Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability : 10000 Pieces Per month
Max.Working Pressure : 16Bar,40Bar,80Bar
Port size : G1/4
Body Material : Brass
Product Name : Auto Drainer
Flow aperture size : 5mm
Drainer time(ON) adjustable : 0.5~20 Seconds
Contact Now

16bar Brass Timer Automatic Drainer With Strainer Filter and Drainage Valve

OPT Series Electrical timer auto drainer working pressure 16bar,40bar,80bar with Timer and drainer valve,strainer filter


Quick Detail:


* OPT Series electrical timer auto drainer

* OPT-A with valve,strainer filter ball valve separted

* OPT-B with valve,strainer filter ball valve intergrated

* With timer for timming control

* Drainer solenoid valve two poistion two direct acting

* Max.working pressure 16Bar,40bar,80bar for option

* Body Material brass,stainless steel for option

* With test micro switch,interval time and drainer can be adjustable

* Free maintenance

* Big flow rate

* Fast and sensitive reponse,low consumption

* One model can be for multi-application


Applications:


OPT Series timer auto drainer valve can be installed at any low point in a compressed air system where condensate forms or is collected.

OPT series timer auto drainer valve widely used in air compressor system coolers, separators, receivers, compressor accumulators,filter units, drier,water-dropper etc.

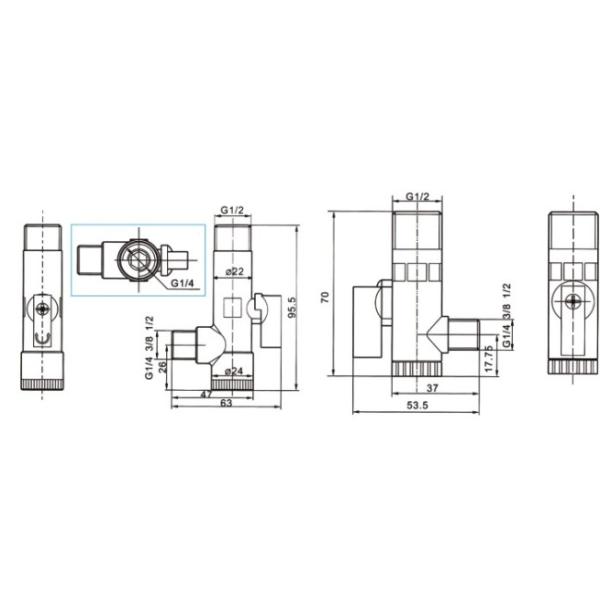

Specifications:


OPT-A

OPT-B

TIMER

ORDERING CODE

OPT-A

16

04

Type

Max.Working Pressure

Drainer Valve Port size

OPT-A:OPT-A Timer Auto drainer with valve and strainer filter ball valve sepearted

16:16Bar

02:G1/4"

40:40Bar

03:G3/8"

OPT-B:OPT-B Timer Auto Drainer with valve and strainer filter ball valve intergrated

80:80Bar

04:G1/2"


SPECIFICATION


1,One model for universal application,easy for installation,automatic operation,free of maintanence

2,Drainer solenoid valve Brass material standard,stainless steel and explosion-Proof according to requirement

3,Drainer solenoid valve motion:two position two way direct acting

4,Outlet inlet port size:G1/4,G3/8,G1/2

5,Flow aperture size:5mm

6Timer housing material:ABS flame retardant

7,Interval Time (OFF)adustable by test micro switch:0.5~45Minutes

8,Drainer time(ON) adjustable:0.5~20 Seconds

9,Manual test button:Micro switch

10,Voltage:24~230V AC/DC

11,Power Consumption:≤4Ma

12,Electricity connect standard:Din 43650A

13,Indicator: LED indicator of “ON” and “OFF”

14,Working temperature:2~60℃

15,Protection and insulation:IP65(NEMA4) H Class

16,Voltage Tolerance:±10%

17:Seal Material:VITON(FKM)

18:Strainer filter ball valve port size: Inlet and outlet G1/2”

20,Design Standard:VDE01 10C


Pneumatic Valve, Timer Auto drainer valve,Timer Auto Discharger valve
